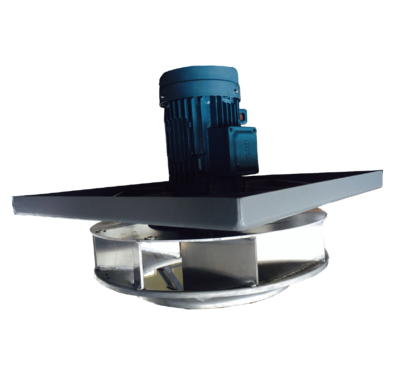

NORFOLK PLUG FAN
诺福克嵌入式风机
Application运用范围
诺福克（Norfolk Blower）嵌入式风机的设计得非常容易安装在微波炉、干衣机、窑炉、墙壁、天花板上。这款嵌入式风机具有耐高温隔热墙体的性能。
Operating Range工作数据
最大风量
81700M3/H
最大静压:
3.25KPa
最大承受温度
426℃
风机尺寸
311mm to 1130mm
Features特点
•
Unhoused wheel installs inside unit with the drive panel on the outside
无外壳的叶轮装在里侧，驱动板装在外侧
Stable air flow over entire performance range
全性能范围内稳定气流
Large flush mounting panels minimize panel wall loading大的嵌入式面板使面板墙面负荷最小化
Efficient airfoil wheel has steep pressure curve that compensates for system variation
高效翼型叶轮有陡降曲线，可补偿系统变化
Spun steel wheel cone optimizes air flow
离心钢锥轮优化气流
Rugged gusset construction with heavy gauge adjustable motor base
带大规格可调电机底座的坚固支撑结构
Options可选部件
Inlet volume control进风量调节器
Adjustable motor base可调电机底座
Shipping crate海运包装箱
Slip fit inlet软连接进风口
Type "B" wheel 后倾向叶轮
Aluminum inlet cone铝制进风口锥形体
Shaft seal轴封
Mount motor base, motor and drive
装配好的电机（电机座）和驱动
Shaft cooler with guard带防护罩的轴冷却器
Bearing and shaft guard轴承和轴的保护罩
Housing机架
Higher RPM wheels高转速的叶轮
6" Overhang 6”挂耳
72% Width inlet cone宽度为72％的锥形进风口
Fully assembled and run tested全面组装运行测试
A/9 Belt guard皮带防护罩
